Associated 1/10 B44.3 Factory Team 4WD Kit

FEATURES

Chassis: Hard anodized aluminum, with front and rear carbon fiber
front decks and floating servo mount to improve symmetrical
chassis flex
Drive: Four wheel with full CVAs and ball bearing drive train

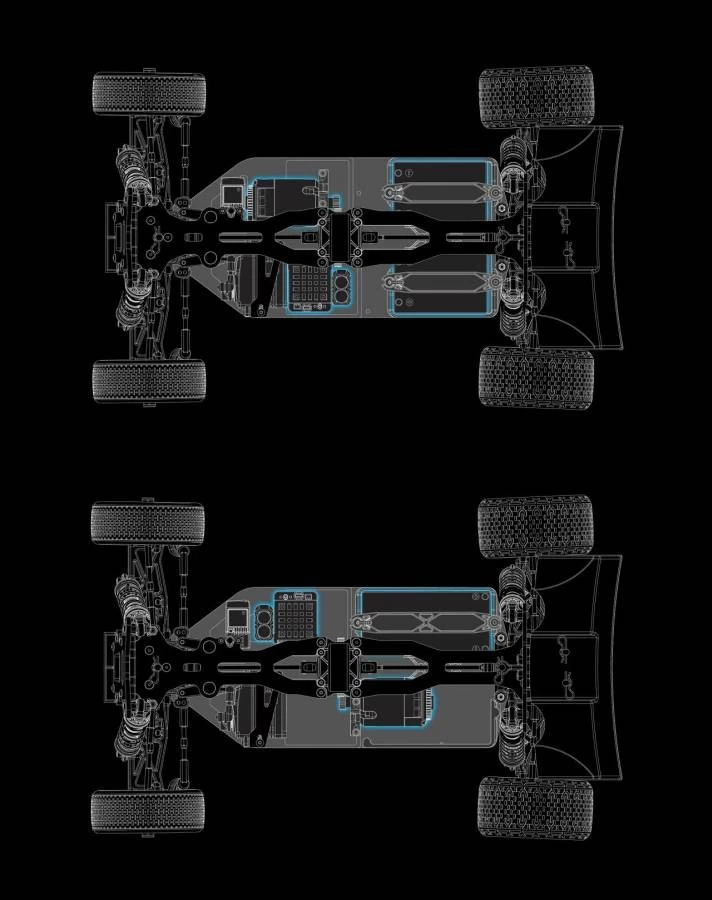

Motor Mount: 7075-T6 aluminum, floating design allows front or rear
mounting configurations, front motor mounting allows saddle pack
usage, rear motor mounting allows shorty battery pack installation

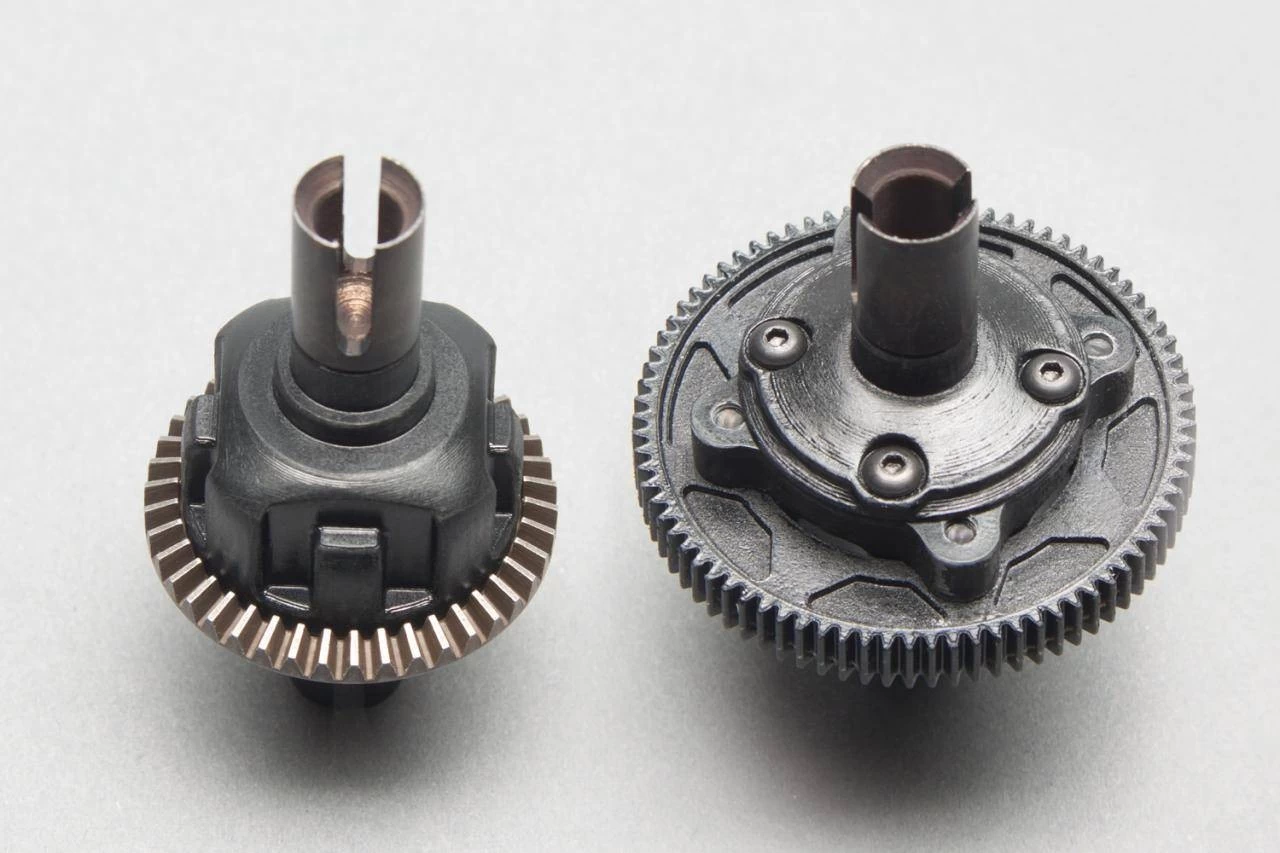

Differentials: Planetary type, front and rear have machined steel
ring, pinion and planetary gears, center diff has independent
fluid cap for easy fluid or gear changes
Shocks: Factory Team V2 12mm Big Bore threaded aluminum body, 3mm
shafts, molded caps with bleed screws, updated O-rings for
improved smoothness, aluminum pivot balls
Body: JConcepts Finnisher X-flow body with AE 6.5″ high downforce
wing
Front Wheels: 2.2″ diameter, 1.03″ (26mm) wide white dish
Rear Wheels: 2.2″ diameter, 1.5″ (38mm) wide white dish
Rear Hubs: Factory Team 12mm blue aluminum clamping hexes
Battery Trays: Molded construction accomodates 2S saddle or shorty
packs & feature a quick-change strap w/locking thumb knobs
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle



INCLUDES

Factory Team B44.3 Buggy Kit with Clear Body, Wheels, Decals, two
Bottles of Diff Fluid, one Bottle of Shock Oil,
Instruction Manual



REQUIREMENTS

Radio: 2-channel with high-torque steering servo
Motor: Brushless
ESC: Compatible with selected motor
Battery: 2S, 7.4V LiPo saddle or Shorty pack
Battery Charger: Compatible with selected battery
Tires: Front & rear 4WD buggy
Building and track equipment



SPECIFICATIONS

Length: 14.9″ (378mm)
Wheelbase: 11.2″ (284mm)
Width and Weight vary with the electronics and tires used to complete
kit
