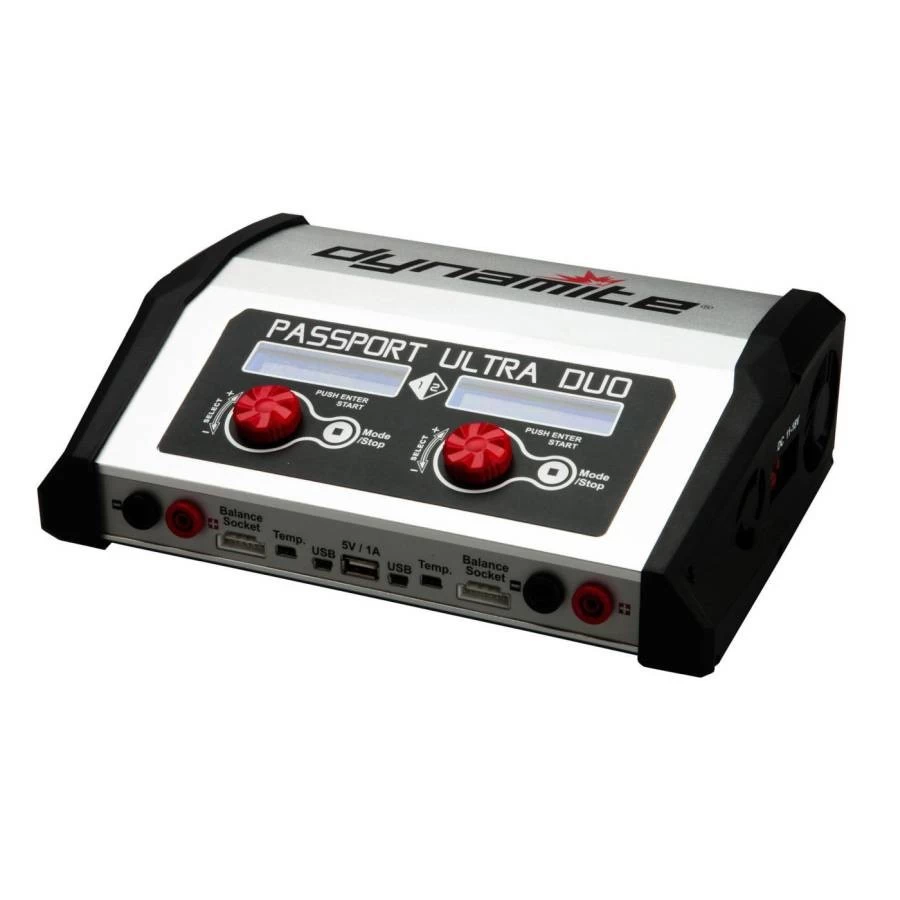

Dynamite Passport Duo 400W Dual AC/DC Charger

The Dynamite® Passport™ Ultra Duo battery charger represents the pinnacle of premium, high-performance chargers. The one-of-a-kind Ultra Duo is the only 400W (200W x2) charger on the market with an internal high-capacity (500W) AC power supply. Now extremely fast charge times are possible thanks to the ability to charge at higher C rates, even on AC power! With dual 200W output capability, the Ultra Duo can charge low-to-medium capacity 3C Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, the Ultra Duo resides within the family of Dynamite Passport chargers, meaning you get the full gamut of charging features, including the ability to charge virtually all battery types, a digital dot matrix display and an easy-to-use jog dial navigation.

• Internal AC power supply saves on space and doesn’t require a separate external power supply

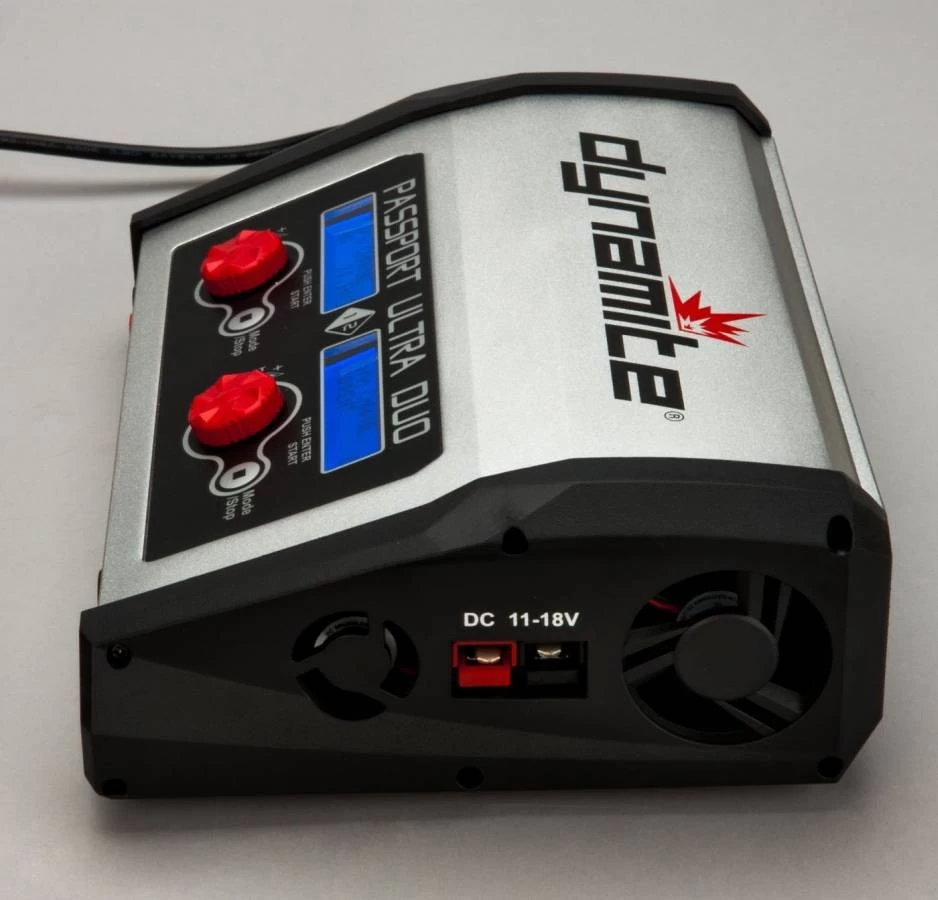

• 100–240V AC (50/60Hz) or 11–18V DC input voltage

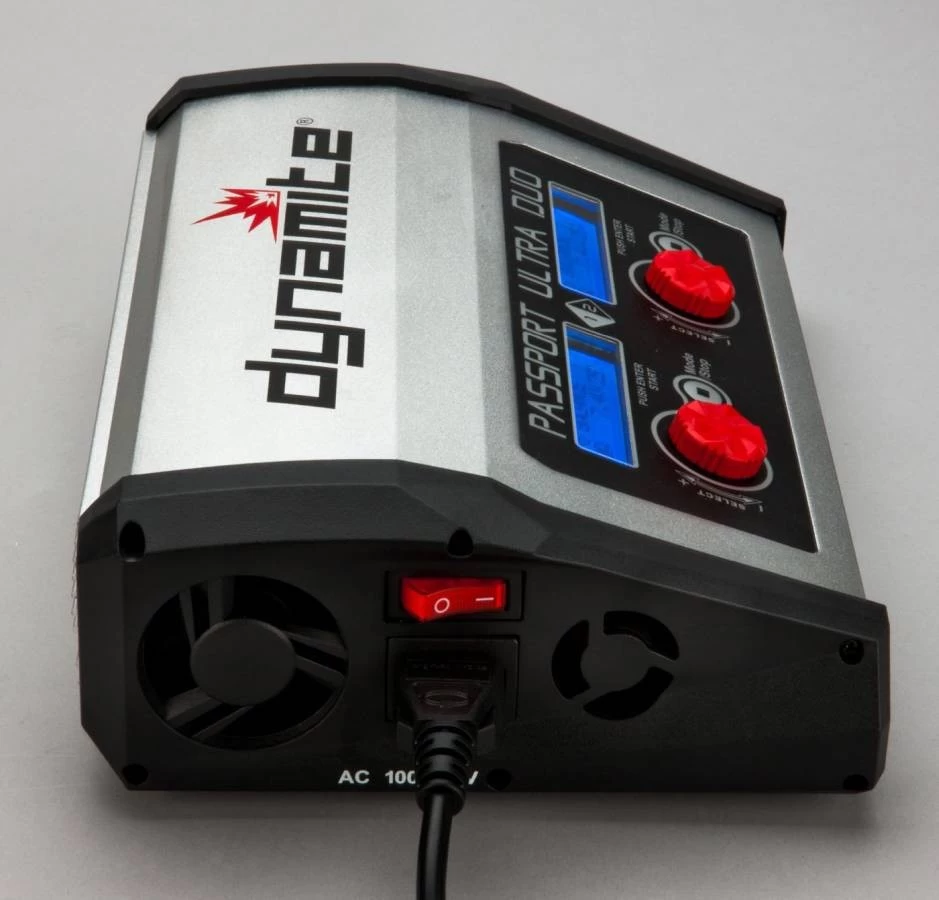

• Detachable AC power cord
• 200W charge power per output
• 25W discharge power per output
• Short-circuit, over-current, and reverse-polarity protection
• Low-input voltage protection
• Over-temperature protection
• Battery storage mode
• IP33CW, IK07 environmental rating

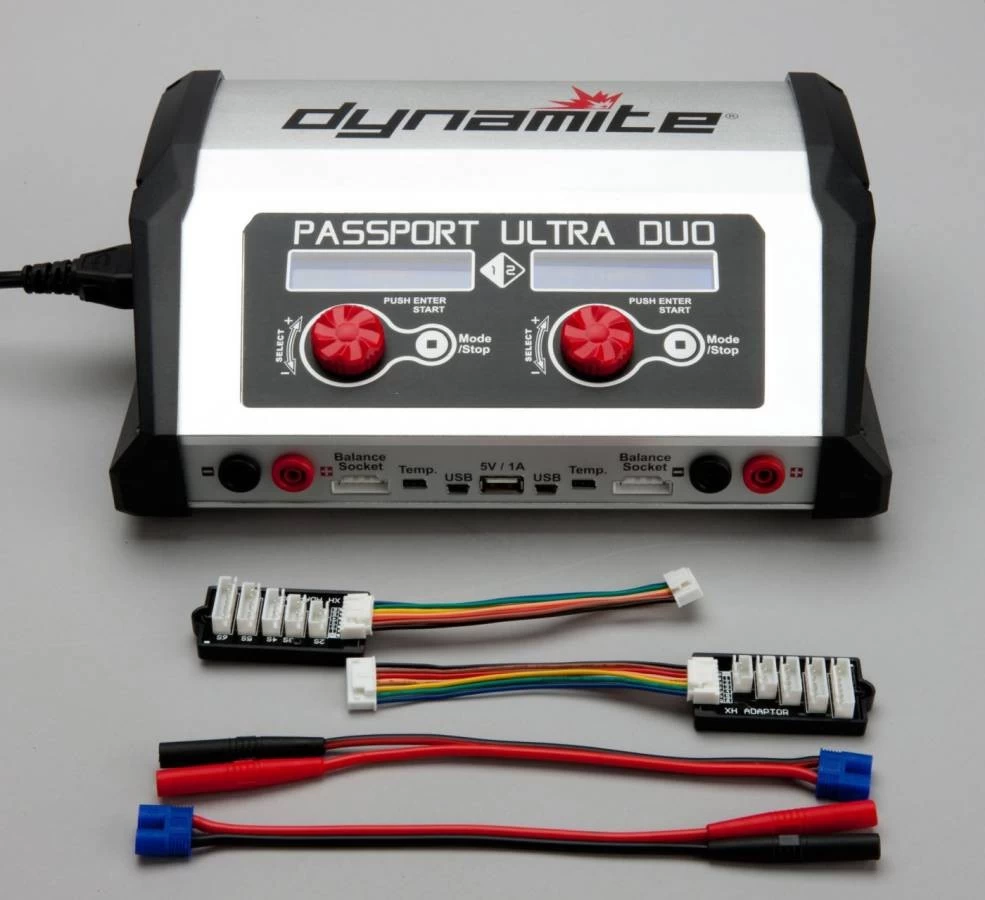

• Includes (2) insulated banana-to-EC3™ battery adapter cables
• Includes (2) JST-XH balance adapter boards
• Optional high-current DC power cord available (DYN4012)
• Charges Li-Po/Li-Fe/Li-Ion (1–6 cell), Ni-MH/Ni-Cd (1–15 cell) and Pb battery types
• 500W internal power supply ensures that full power output is available even while utilizing both charge outputs and all USB power options
• 0.1–10.0A adjustable charge current per output

Ampere Meter: Yes – on main LCD display

Battery Balance Connector: JST_XH

Battery Temperature Monitoring: Yes – Temperature Sensor Not Included

Battery Type: 1–6S LiFe, LiIon, LiPo; 1–15C NiCd, NiMH; Pb

Cooling Method: Multiple internal fans

Discharge: Yes

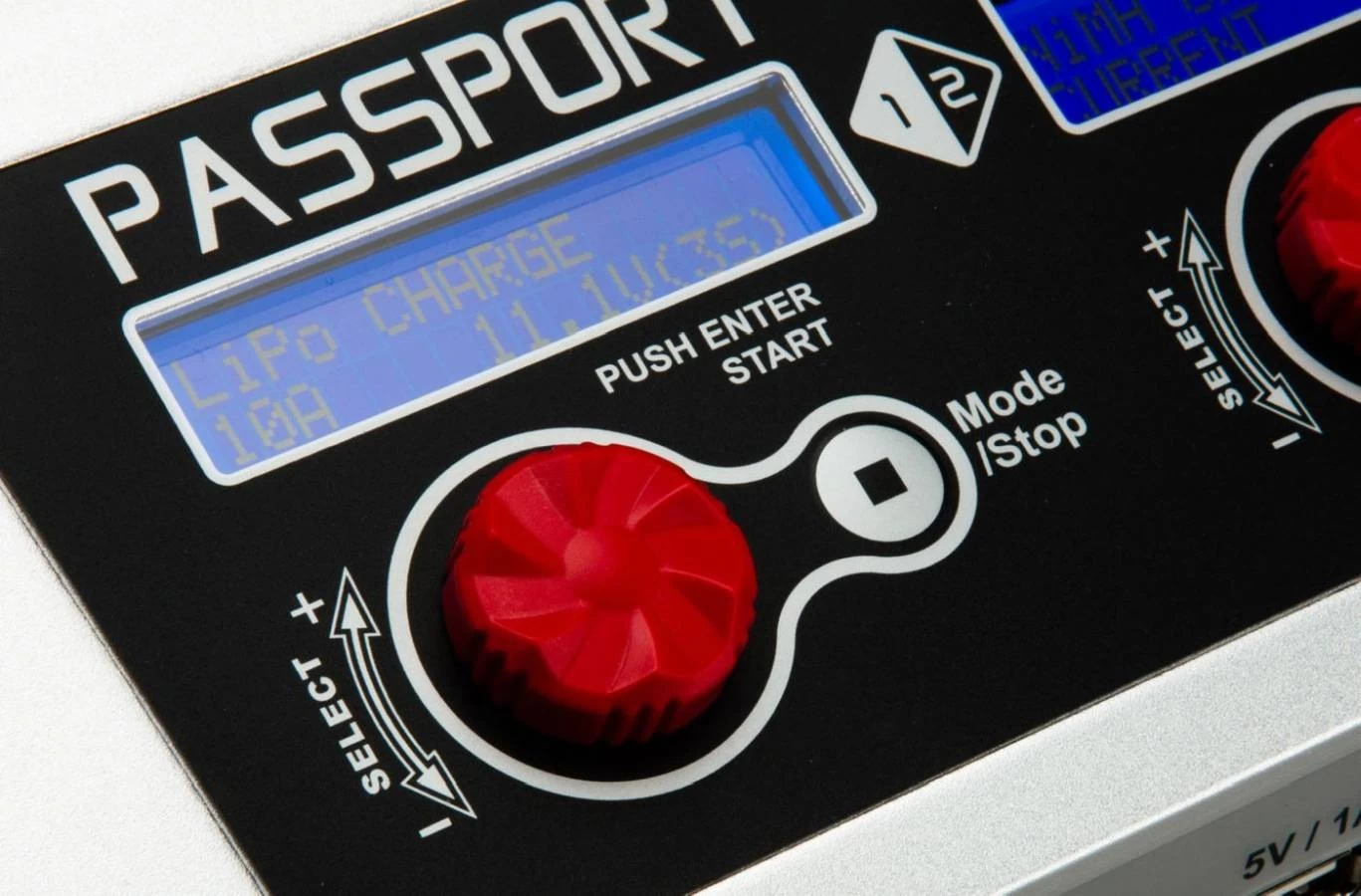

Display: LCD – 2 Line x 16 Characters

Input: 100–240VAC or 12VDC

Input Connector: AC cord, detachable, North American plug, DC cord, detachable, alligator clips

Integrated Balancing: Yes – Internal Balancer & External Adapter

Low Input Voltage Protection: Yes

Maximum Continuous Discharge Rate: 0.1 to 5.0A

Normal/Standard Charge Rate: 0.1 to 10.0A

Output Connector: Banana Plug

Over Current Protection: Yes

PC Connectivity: Yes – USB

Peak Detection: Yes

Reverse Polarity Protection: Yes

Safety Timer: Yes

Selectable Charge Rate: Yes – Incremental (0.1A Increments)

Short Circuit Protection: Yes

Thermal Protection: Yes

Voltage Meter: Yes – on main LCD display
