RGRC80W-ACDC

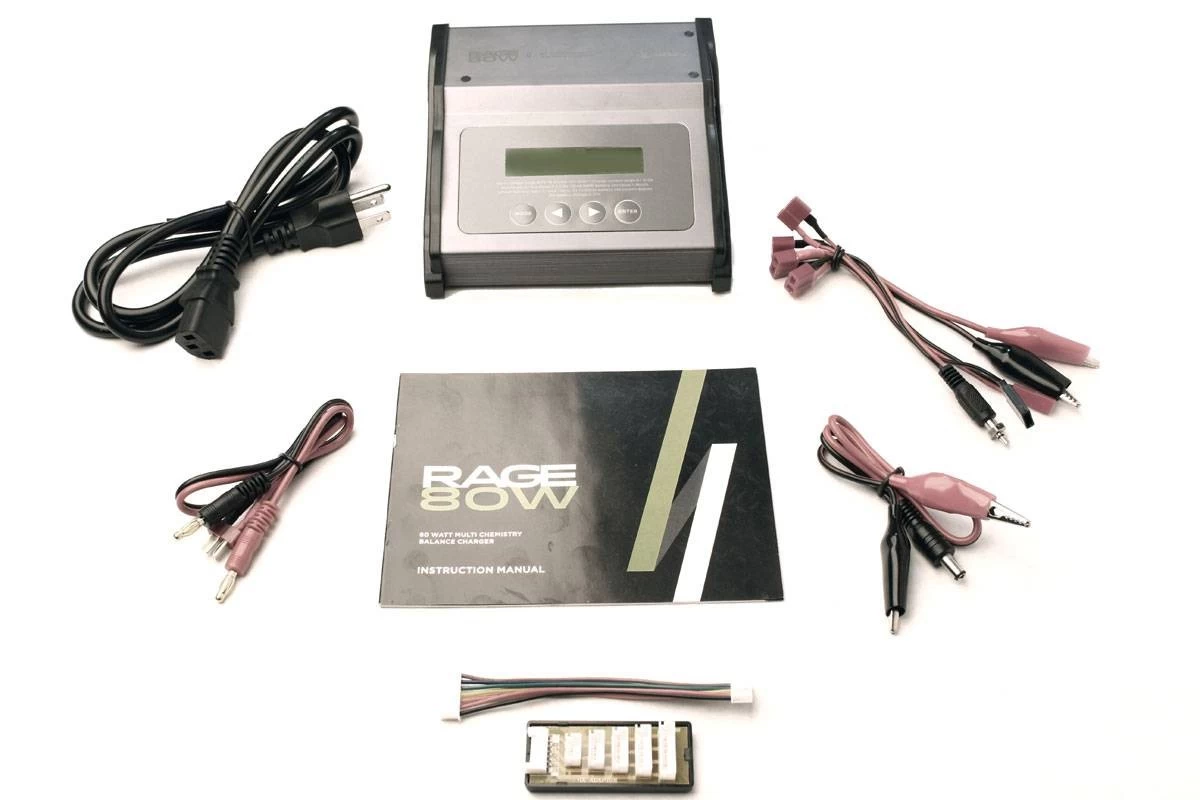

The RAGE80W comes with an assortment of charging accessories, such as a JST-XH balance board, T-Plug charge lead (with adapters), and AC and DC power cords. All you need to do is read your manual and you will be ready to charge your batteries both at home and in the field. The RAGE80W was designed to be intuitive to operate, making it enjoyable for the newest RC enthusiast as well as the RC veteran. Whether you want to charge some basic NiCd and NiMH battery packs, some new high powered LiPo and Life battery packs, or maybe even your Pb Acid Gelcell for your starter, this charger can charge them all quickly and safely. For the ultimate in convenience the RAGE80W features both AC and DC power options. If you ever need any help with your charger, including service or repair, RAGE RC Customer Service is fast, friendly, and available at your fingertips. The RAGE80W features a 30 day product warranty against manufacturer defects.

• This charger employs advanced charging features and built in failsafe functions. These features and functions work in tandem to help create a safe charging environment and reduce the dangers caused by negligence and user error.
• This charger uses Synchronous Buck and Boost Converter Technology which allows up to 90% conversion efficiency.
• Charges the following RC battery chemistries: LiPo, Li-Ion, LiFe, NiMH, NiCd, Pb
• Simple and efficient interface provides easy operation, powerful functions, and abundant information. Real-time readings show you battery voltage, charge current, battery temperature (with optional temperature sensor, not included), capacity of charge or discharge, elapsed time, input voltage, and more!
• This charger employs an individual-cell-voltage balancer to precisely monitor and individually balance the cells of your lithium packs (Tolerance of +/- 0.01V).
• Allows charging and discharging down to a single cell battery for DIY projects.
• Provides a full array of charging modes to meet your needs including:
• Auto Charging,
• Balance Charging
• Fast Charging
• Cyclic Charging
• and Storage modes.
• Internal five model memory allows you to create, save, and store up to five charge profiles.
• Perform up to 5 cycles of charge>discharge or discharge>charge for NiMH and NiCd battery conditioning.
• Connect an optional high-precision digital temperature sensor to monitor battery temperature. Program temperature cut-off levels to terminate charging at a specific temperature.

Input Voltage AC: 120-240V

Balance Tolerance: +-0.01V

Input Voltage DC: 11-18V

NiCd/NiMH Battery Cell Count: 1-18 Cells

Charge Current: 0.1-6.0A

Lithium Battery Types: LiPo, Li-Ion, LiFe

Discharge Current: 0.1-2.0A

Lithium Battery Cell Count: 1-6 Series

Charge Power: 80W Maximum

Pb Battery Voltage: 2-24V

Discharge Power: 10W Maximum

Weight: Approx. 640g

Balance Current: 300mA

Dimensions: Approx. 145x145x56mm
