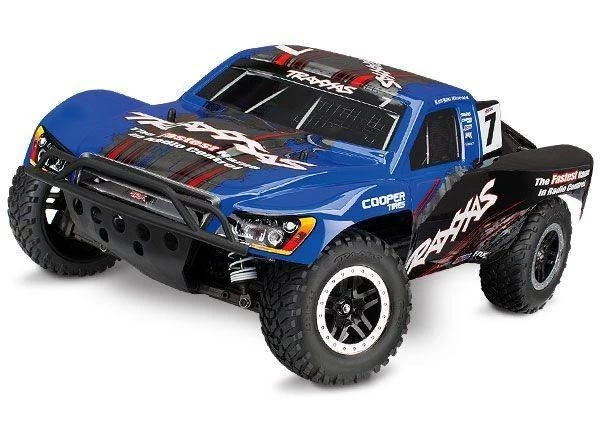

Traxxas 1/10 Slash 4WD Brushless RTR Short Course Truck, Blue

The Traxxas Slash defines the short course truck segment and sets the standard for durability, performance, and technology. Innovative features like Traxxas Stability Management (TSM), modular chassis design, and ultra-efficient shaft drive complement Slash’s track-tested precision and rock-solid durability. Slash 4X4’s extreme Velineon brushless power provides screaming 60+mph speed while the TQi radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash 4X4 elevates short course performance to a whole new level.

• Traxxas Stability ManagementTM (TSM)
• Powered by the Velineon® Brushless Power System
• Slash 4X4 reaches speeds in excess of 60+mph!*
• Maxx® Cable 12-gauge wire
• Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
• Velineon VXL-3s Electronic Speed Control
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Training Mode™ – 50% Forward / Brake / 50% Reverse (patented)
• Velineon 3500 Brushless Motor
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• TQi 2.4GHz transmitter
• Compatible with optional Traxxas Link Wireless Module ( tra6511 ) for full Traxxas Link App capability Traxxas Link is designed for use with Android 4.4 and up or iOS 4.3 and later.
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control

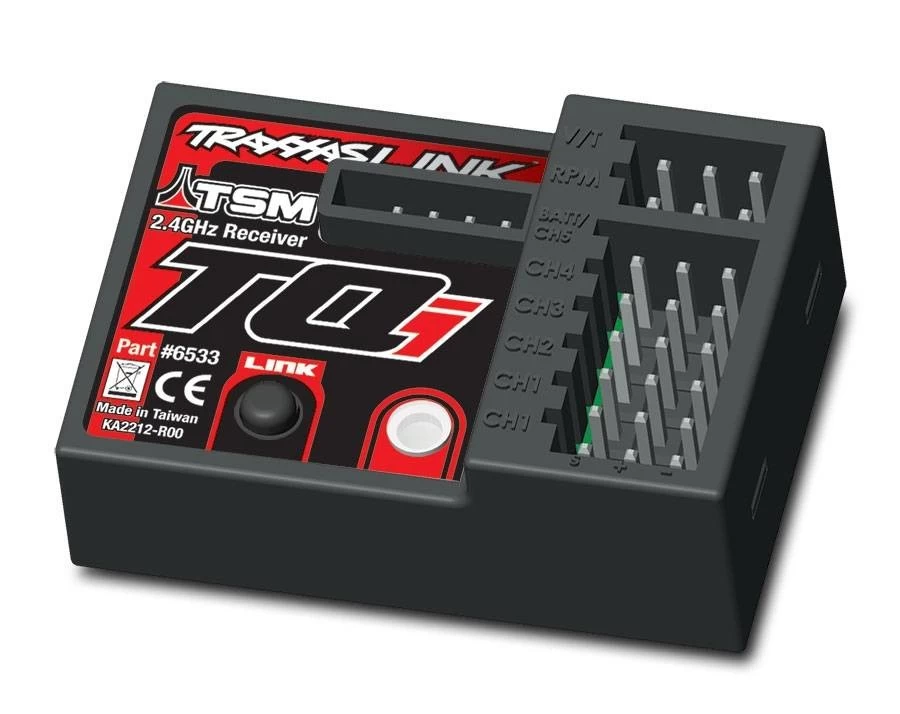

• TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) ( tra6533 ), fail-safe security and integrated telemetry ports

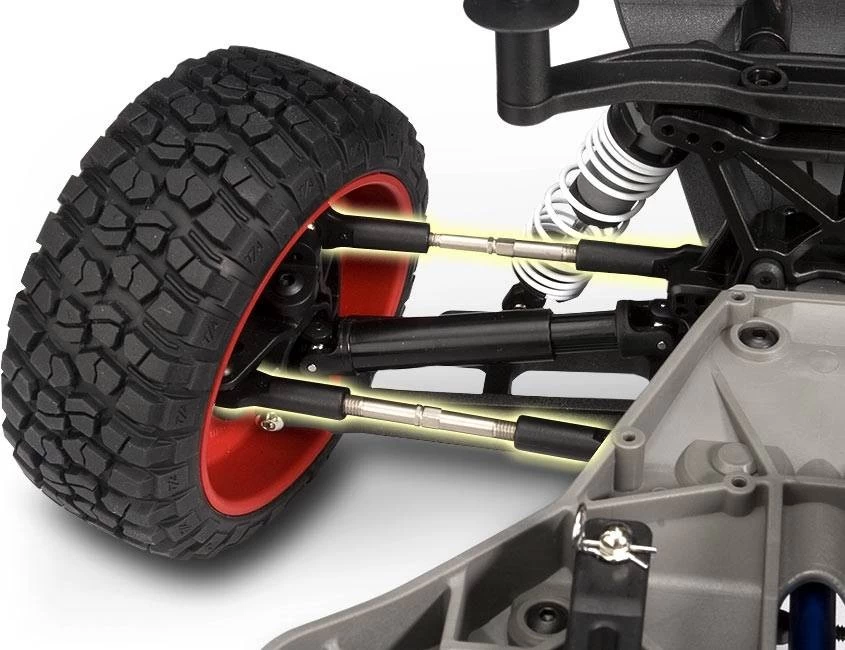

• Durable steel turnbuckles and captured rod ends
• Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds
• Modular simplicity, fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated Personal Transponder Mount
• Versatile battery compartment easily adapts to multiple styles of batteries; 6 or 7-cell NiMh battery packs and various configurations of Lithium Polymer packs are no problem for Slash 4X4
• Digital high-torque Traxxas tra2075 waterproof steering servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials
• Torque-Control™ slipper clutch system
• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued all-terrain tires with high-performance foam inserts
• ProGraphix® painted race replica bodies
• Full line of genuine Traxxas accessories available
• Slash 4X4 is backed by unparalleled Traxxas support and parts availability

Length: 22.36 Inches (568mm)

Front Track: 11.65 Inches (296mm)

Rear Track: 11.65 Inches (296mm)

Center Ground Clearance: 2.83 Inches (72mm)

Weight: 93.1oz (2.64kg)

Height (overall): 7.60 Inches (193mm)

Wheelbase: 12.75 Inches (324mm)

Shock Length: Long (front), XXLong (rear)

Tires: Traxxas 2.2″ Pre-Glued with Foam Inserts

Tire Diameter: 4.31 Inches (109.5mm) (front and rear)

Wheels (front/rear): 2.2″ Split-Spoke, Black or Red Beadlock

Wheel Diameter: 2.2 Inches (56mm) Outer; 3.0 Inches (76mm) Inner

Speed Control Type: VXL-3s™ Electronic Speed Control

Motor (electric): Velineon® 3500 Brushless

Overall Drive Ratio: 11.82 (stock, out-of-box)

Differential Type: Hardened Steel Bevel, Sealed, Limited Slip

Gear Pitch: 32

Chassis Structure/Material: Molded Tub / Nylon Composite

Drive System: Shaft-Driven, Direct Drive 4WD

Steering: Dual-Bellcrank with Integrated Servo Saver

Radio System (transmitter): TQi™ 2.4GHz (2-channel)

Radio System (receiver): Traxxas Stability Management™ ( tra6533 )

Top Speed: 60+mph*

Skill Level: 1

Battery Tray Dimensions: ** 165mm x 49.5mm x 23mm, 25mm

*With optional gearing and 3S LiPo battery (items sold separately)

**Battery expansion kit available

Traxxas Stability ManagementTM:
Traxxas Stability ManagementTM (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead fullthrottle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it!

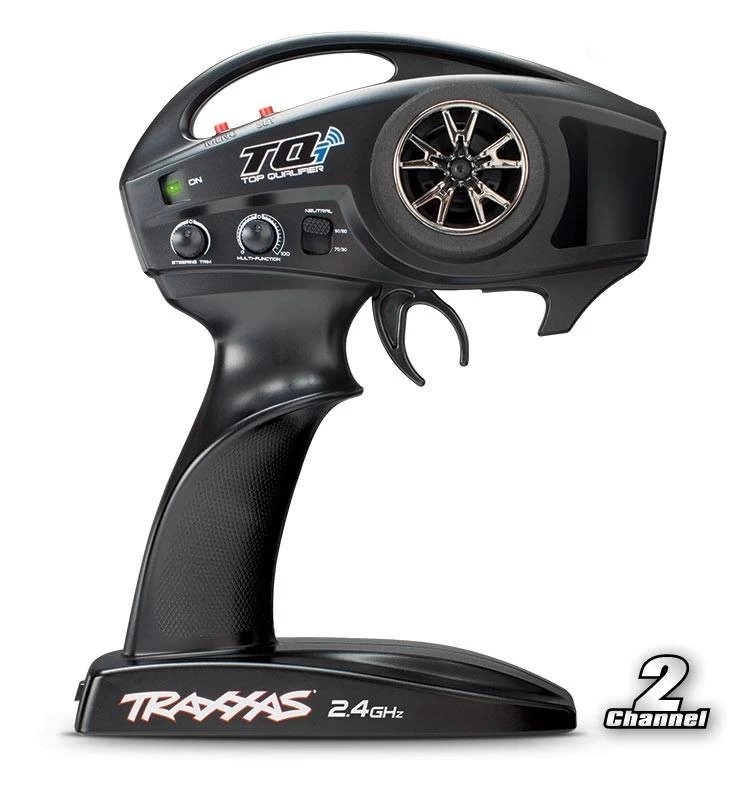

Precision 2.4GHz Control:
Traxxas Slash 4X4 is equipped with the world’s most advanced Ready-To-Race® radio system. The all-new Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of “no channels, no crystals” 2.4GHz technology—but that’s just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or “model memory” settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely and the Multi-Function knob can be programmed to control Traxxas Stability Management (TSM), Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi’s ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

Training Mode™:
Traxxas’ exclusive patented Training Mode let’s everyone get in on the racing action. Just press a button to limit full-throttle power to 50%. This allows young or new drivers to safely develop their control skills before unlocking full power Traxxas Slash 4X4. Training mode even makes it easy to hand the transmitter over to your friends who have never driven a radio controlled truck before.

Sealed Watertight Receiver Box:
Slash 4X4’s receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a patented watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.

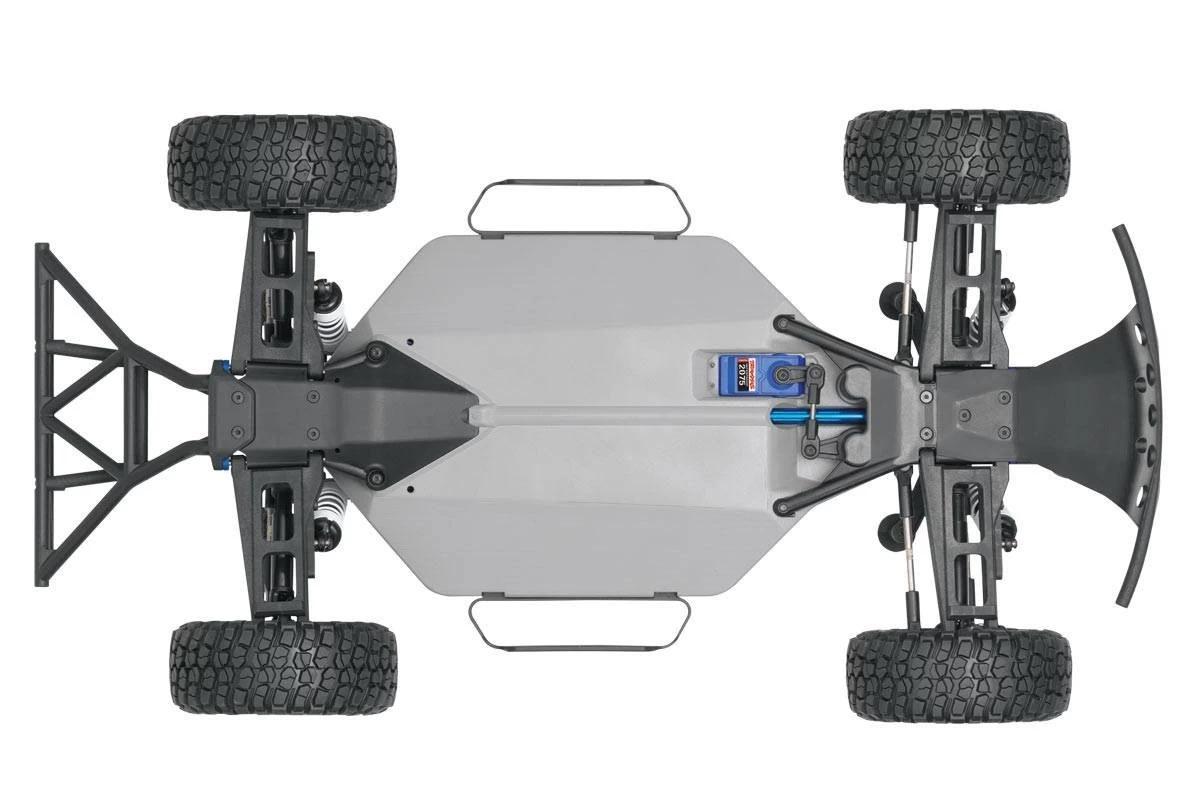

Modular Simplicity:
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. The Slash 4X4’s modular design allows the entire front section to be removed with just five screws, and the rear assembly with just four screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.

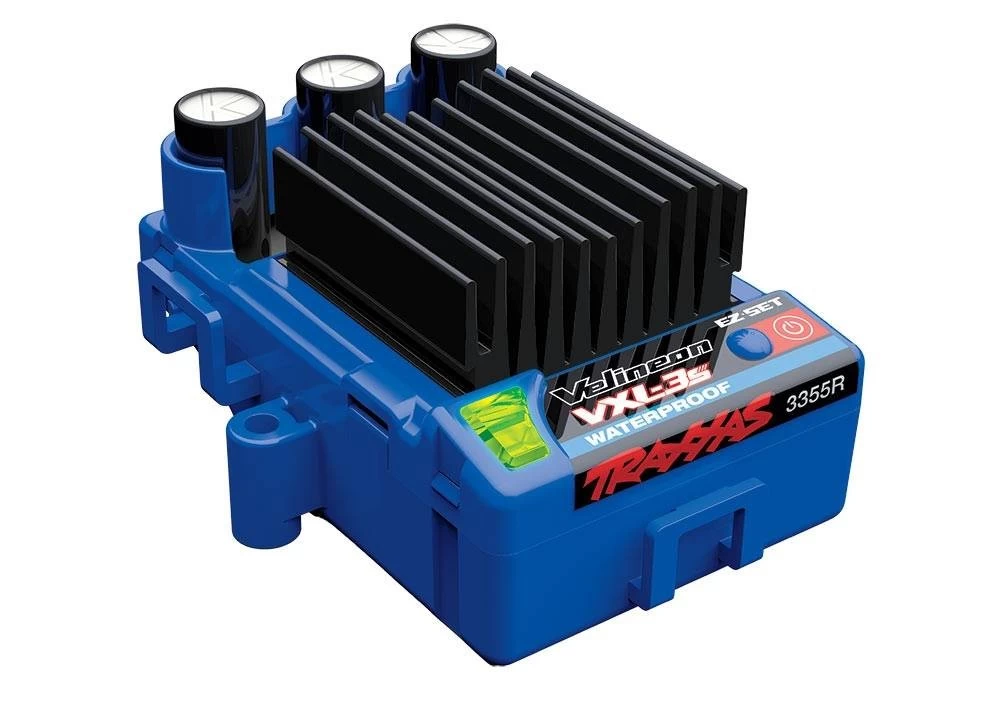

Velineon® VXL-3s ESC:
The Velineon VXL-3s speed control is loaded with high-grade technology to precisely deliver maximum power to the motor. It’s engineered for today’s battery technology and beyond. Two-stage low voltage detection allows full LiPo compatibility, including powerful 11.1-volt 3S packs!

Velineon® 3500 Brushless Motor:
Extreme performance is standard equipment with the sensorless Velineon motor. Ultra high-temperature Neodymium magnets, high-speed ball bearings, and a precision balanced rotor deliver power and long life with near zero maintenance. Since there are no brushes or commutator to wear out, you always get the same blistering acceleration and ballistic top speed run after run.

Oil-Filled Ultra Shocks™:
High-speed off-road action requires rugged, responsive shocks that can take abuse. Traxxas Ultra Shocks are proven tough as stock equipment for Traxxas Maxx trucks. The high-volume body yields large oil capacity, and a silicone bladder separates oil from air within the shock for consistent damping action, even during all-day off-road sessions. Dual X-ring seals give super-smooth performance without weeping or leaking, and Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons.

Extruded Aluminum Driveshaft:
Slash 4X4’s center driveshaft is formed from extruded aluminum. There are no dogbones to wear, no drive cups to wobble. The extrusion process allows the shaft to be hollow and lightweight with internal splines that fit directly and securely onto the input shafts of the front and rear drive assemblies. The shaft runs perfectly straight and true and offers superior durability. Traxxas engineers highlighted this important innovation with vivid blue anodizing and a laser-etched Traxxas logo.

Aggressive Short Course Body:
The Traxxas Slash set the standard for short course RC style and the Slash 4X4 carries it to the next level with an even more aggressive and realistic stance. Sharper edges, bolder curves, and proportions that scream speed signal the horsepower that lurks beneath. Body mounting holes are identical to the 2WD Slash.
