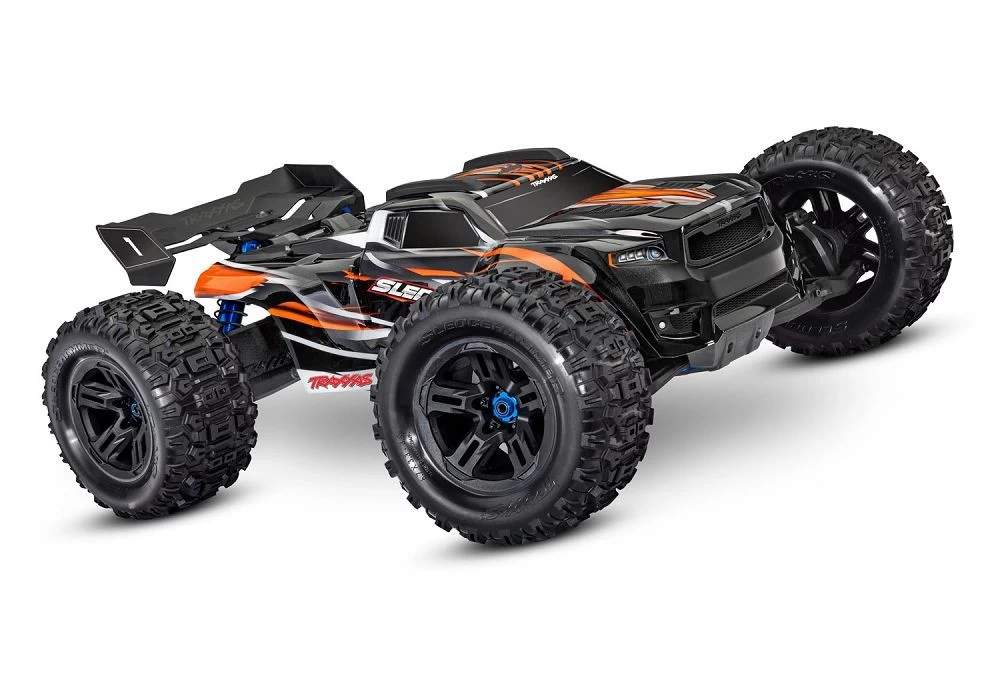

Traxxas Sledge 1/8 4WD Brushless VXL-6S Monster Truck, ORANGE

Engineered. Tested. Built to a higher standard. The all-new Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.

• VXL-6s Waterproof Electronic Speed Control
• 6s LiPo compatible
• Integrated cooling fan
• Real-time telemetry via Traxxas Link™
• 3-LED status indicators
• Powered accessory ports
• 10-gauge silicone wire
• Patented Traxxas High-Current Connectors
• Velineon® 2000kV Brushless Motor
• 4-pole 2000kV brushless motor
• 5mm output shaft
• Finned can for better heat dissipation
• Aluminum motor cradle mount
• Supports entire motor
• Reduces flex for longer gear life
• Up to 70+ mph with Two 3s LiPo Batteries
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4GHz High Output Radio System
• TQi™ 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• 5-channel micro receiver ( TRA6533 ) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Oil-filled GT-Maxx® Shocks
• Longer rear shocks for more travel
• Machined aluminum threaded body
• Extra-large bore and capacity
• Large-diameter damper shaft
• Lower cartridge with dual X-rings
• Height-adjustable spring retainer
• Lower spring perches bolted on
• Chassis
• 3.2mm ribbed aluminum chassis
• Formed edges for improved strength
• Thick T-Bar™ for added rigidity
• Stronger than round bars
• High-strength buttressing on shock towers
• Ultra-thick 5mm 6061-T6 aluminum shock towers
• Rugged locking battery compartment with quick-release door
• Low-CG design for improved handling
• Interlocking components for tight tolerances
• Tough front and rear bumpers double as skid plates
• Hidden wire management for clean appearance
• ProGraphix® Body
• Clipless body mounting system
• Rigid internal frame
• Molded body reinforcements for tear-through protection
• Protective roof skids
• Rugged high-downforce rear wing
• Wheels and Tires
• Huge 6.7” Sledgehammer® all-terrain tires
• TSM-rated construction resists ballooning
• Tough 3.8” black wheels
• Splined 17mm aluminum axle hubs
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

Length (including wing): 23.78 inches (604mm)

Front Track: 18.10 inches (459mm)

Rear Track: 18.10 inches (459mm)

Ground Clearance: 1.95 inches (50mm)

Weight (no battery): 12.74 pounds (5.77kgs)

Height (overall): 8.43 inches (214mm)

Wheelbase: 15.10 inches (384mm)

Shock Length (front): 5.12 inches (128mm)

Shock Length (rear): 5.67 inches (144mm)

Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)

Wheel Diameter: 3.8 inches (97mm)

Speed Control: Velineon® VXL-6s (#3485)

Motor (electric): Velineon® 2000kV Brushless

Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Pitch: Module 1.0

Chassis Structure/Material: 3.2mm aluminum plate

Brake Type: Electronic

Drive System: Shaft-driven 4WD

Steering: Double-shear bellcrank w/metal servo arm

Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 6.7×3.8

Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver

Servo: 2275 Waterproof, metal-gear (347oz-in torque)

Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)

Skill Level: 4

Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*

Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*

Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

ENGINEERED FOR 6s POWER:
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

SUPERIOR CHASSIS STRENGTH:
Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

NEW CLIPLESS BODY:
Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.”

MONSTER SERVO:
Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

VXL-6s POWER SYSTEM:
The Velineon VXL-6s features new hardware and new tuning specifically for the 2000kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

SLEDGEHAMMER TIRES:
Premium Sledgehammer® tires are standard equipment. No tire upgrade required. Durable foam inserts are designed to not bunch up or break down. Patent-pending Traxxas innovation improves the tire bonding process to reduce the chance of a blown-out bead while exploring the upper range of Sledge’s capability.
