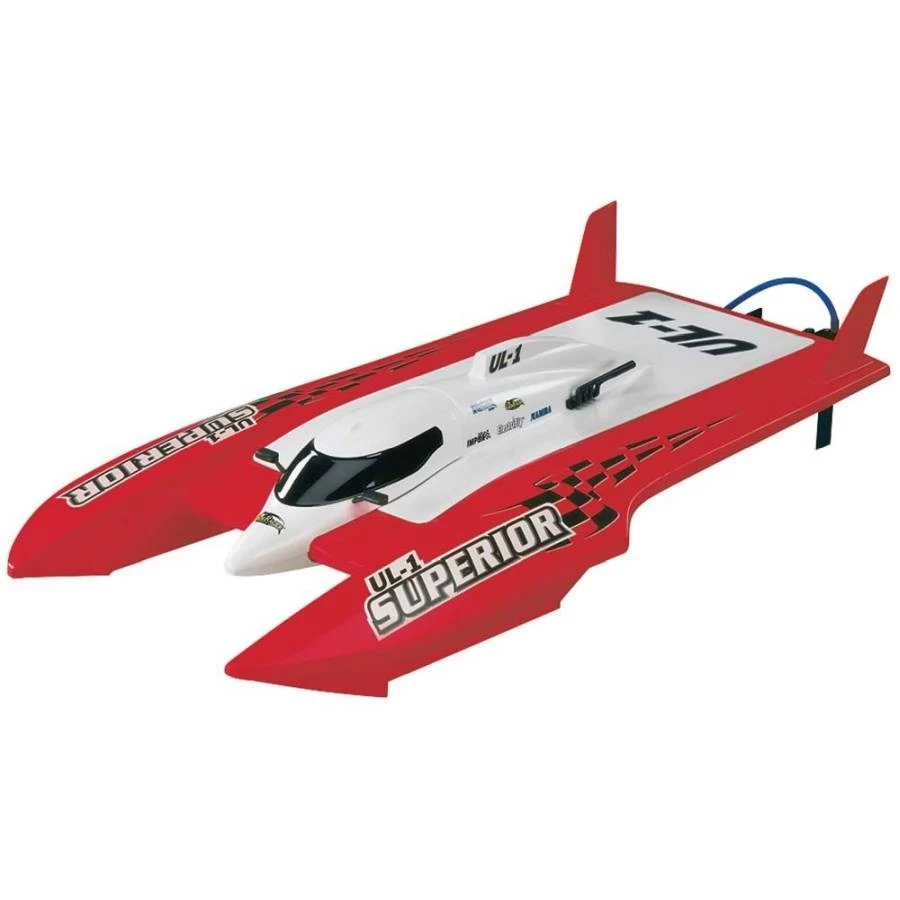

UL-1 Superior FE Hydro RTR With TTX300 2.4GHz, Red

The UL-1 is the racing RTR with all the extras — and no equals! The hull and hardware are GrimRacer designs. The radio is a cutting-edge TTX300 2.4GHz system. The 2030KV brushless marine motor and 60A ESC are water-cooled, waterproof and AquaCraft originals. And the UL-1 is not only legal for NAMBA and IMPBA competition, it’s perfect for LiPo battery power!

• Hull: Lightweight painted fiberglass with molded-in center tub section that houses the motor, batteries and radio equipment, breakaway fins detach under stress to prevent damage to the hull, attach with two-sided tape and float for easy retrieval
• Motor: AquaCraft 6-pole 36-56-2030kV brushless marine motor created exclusively for the UL-1 and high-speed hauling, 4mm motor plugs boost efficiency
• Radio: Tactic TTX-300 2.4GHz SLT system, 3-ch pistol grip transmitter with steering and throttle, and steering trim adjustment, Tactic TSX20 standard servo for rudder control, Tactic TR325 3-channel receiver
• Electronic Speed Control: Water cooled, waterproof, 60A for LiPo usage, a “Stutter Bump” warning at 12V and an auto cut-off at 11.6V insure low voltage protection, ESC is also NiCd and NiMH compatible
• Strut: Black anodized CNC-machined aluminum, adjustable to change prop depth and angle to match water conditions
• Turn Fin: 0.08″ (2mm) thick aluminum with tapered leading edge to reduce drag, adjustable for top performance
• Cowl: ABS plastic with magnetic locking system
• Propeller: 3-blade 40mm FRP

*UL-1 Superior

Hull Length: 27″ (685mm)

Overall Length: 29-1/4″ (744mm)

Beam (Width): 14-1/4″ (361mm)

Overall Height: 6-3/4″ (170mm)

Weight (Less Batteries): 4lbs, 1oz (1.84kg)

Weight RTR (with two 3200 LiPos): 4.9lbs (2.21kg)

* Brushless Motor

Diameter: 1.4″ (36mm) kV Rating: 2030RPM/V

Length: 2.2″ (56mm) Input Voltage: 7-18.5V

Shaft Length: 0.59″ (15mm) Max Constant Current: 50A

Shaft Diameter: 0.20″ (5mm) Max Surge Current: 80A/five seconds

Overall Length: 2.8″ (71mm) No Load Current: 5.0A

Weight: 7.5oz (212g) including connectors

*ESC

Length: 3.25″ (83mm) Battery Connectors: 2 male Ultra Deans plugs

Width: 1.5′ (38mm) Motor Connectors: 4mm bullet (three)

Height: 0.67″ (17mm) Input Voltage: 12-14 NiMH

Weight: 3.8oz (109g) 4 cells LiPo

Wire Gauge: 14AWG 8-20V input w/o BEC

Output Current: 60A continuous maximum BEC: 5.2V/2A

72A surge maximum Stutter Bump Voltage: 12V

Max Output Power: 720 watts Low Voltage Cutoff: 11.6V

On-Resistance: 0.003 ohms Thermal Cutoff: 110°C

Operating Frequency: 8kHz Timing Angle: 10°
