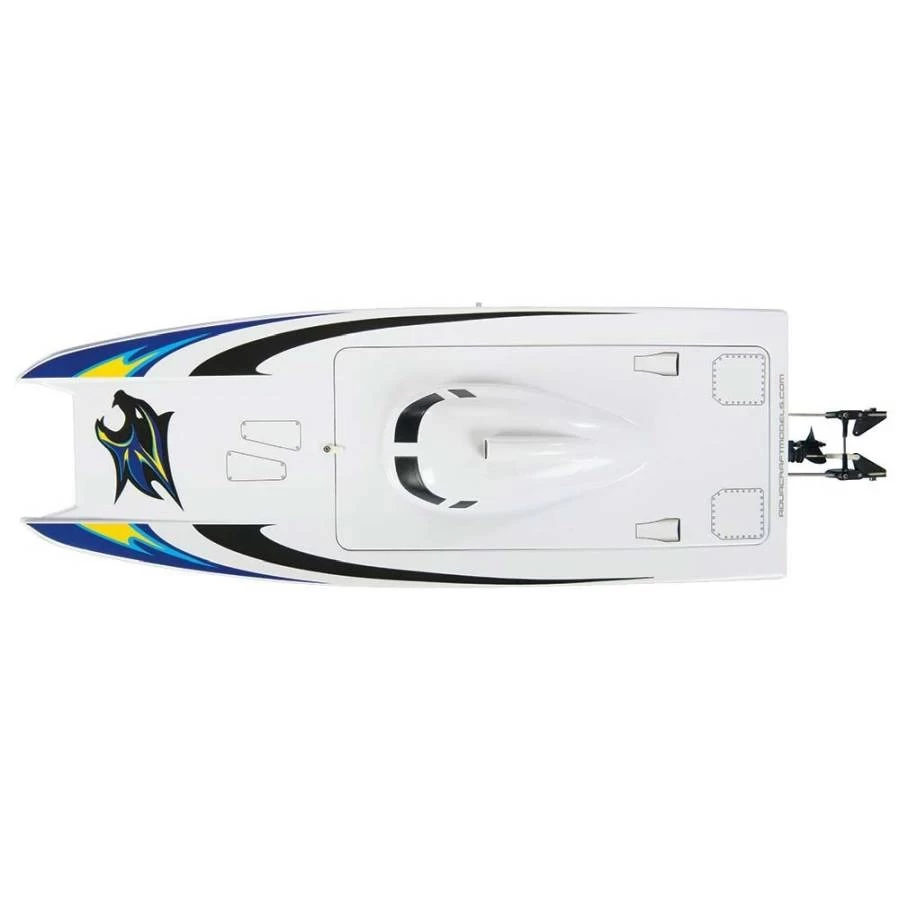

Wildcat EP Brushless RTR Catamaran

Let the Wildcat EP loose and watch it fly! An 1800kV outrunner brushless motor delivers speed and efficiency. There’s also a water-cooled LiPo-compatible 50A brushless controller with low-voltage cutoff, a stutter bump and Deans Ultra Plug connector. A Tactic TTX300 SLT radio system provides first-class control, and a “break-away” rudder system swings back upon impact to prevent damage to the hull.

• Hull: Molded ABS plastic with transom drain plug and preapplied graphics
• Motor: 35-36-1800Kv brushless outrunner
• Motor Mount: Water cooled aluminum with transom mounted water pickup
• Drive System: Surface drive propeller system with 1/8″ (3.2mm) shaft
• Radio: Tactic SLT 2.4GHz TTX300 3-channel with fail safe, steering & throttle trim, servo reversing and steering rate adjustment, TR325 receiver
• Electronic Speed Control: 50A water coooled, LiPo compatible, low voltage compatible and star plug
• Propeller: Two blade 42mm diameter FRP (fiber reinforced plastic)
• Rudders: Two aluminum construction with breakaway shear bolt design

* Boat

Length: 26.5″ (673mm)

Overall: 29″ (737mm)

Beam: 9″ (229mm)

Height: 5.5″ (140mm)

Weight: 32oz (89grams) RTR w/o batteries

* Motor

KV Rating: 1800kv

Operating Current: 3.8A, 8V/DC (without loading, 8V/DC)

Input: 3-S LiPo battery

Max Current: 55A/15S

Shaft Diameter: 4mm

Motor Resistance: 37 miliohms

Dimension: 1.4×1.42″ (35mmx36mm)

Weight: 3.77oz (107g) ±.35oz (10g)

Plugs: 4mm

*ESC

Amps: 50 amp continuous

Max Amps: 65A 10 sec

Voltage Range: 9V-12.6V

BEC: 5V 2A

Motor Connectors: 4mm bullet (3)

Battery Connector: Star

Stutter Voltage: 9.7 volts

LVC: 9 volts

Wire Gauge: #14

Max Output Power: 500 watts

On-Resistance: 0.0015 ohms

Operating Frequency: 8KHZ PWM, 16MHZ MCU

Timing Angle: Auto
